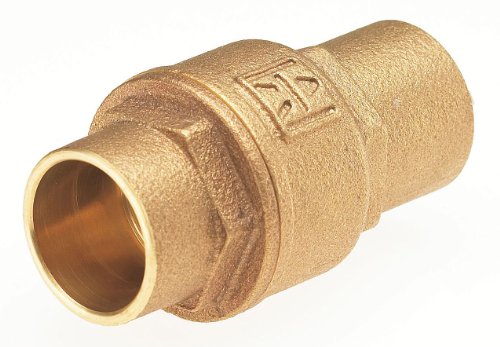

1" Low Lead Bronze Spring Check Valve - High Pressure Brass Check Valve for Water, Oil, Gas - Perfect for Plumbing, HVAC, and Industrial Applications

Product Description

Milwaukee Valve spring-actuated check valve opens and closes by liquid flow and allows flow in only 1 direction to help prevent backflow. Features a silent closing design to help reduce water hammer. A directional arrow cast into valve aids with installation and the valve can be mounted vertically or horizontally. Model is suitable for use in plumbing and heating applications. This listing is for each. Technical Specification Item - Check Valves Check Valve Flow Design Single Mechanism and Body Design Inline Spring Body Material - Valves Bronze Pipe or Tube Size 1 in Connection Type Sweat x Sweat Cracking Pressure 0.750 to 1.000 psi Mounting Orientation Horizontal Seal Material Bronze Max. Temp. - Valves 353 Degrees F Min. Temp. - Valves -20 Degrees F Max. Water Pressure - Valves 250 psi @ 150 Degrees F Max. Steam Pressure - Valves Not Rated Seat Material Brass Flow - Valves 13.0 gpm Full Flow - Valves No Application - Valves General Purpose Length 1 29/32 in Width 1 in Overall Height 3 17/32 in Standards NSF/ANSI 372
